ACGO回路口
| 1406-3249-000 | |
| 全新 | |
| 麻醉设备 | |
| Aestiva | |
| GE医疗 | |
| GE HealthCare | |
| 无 | 不需归还 |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述

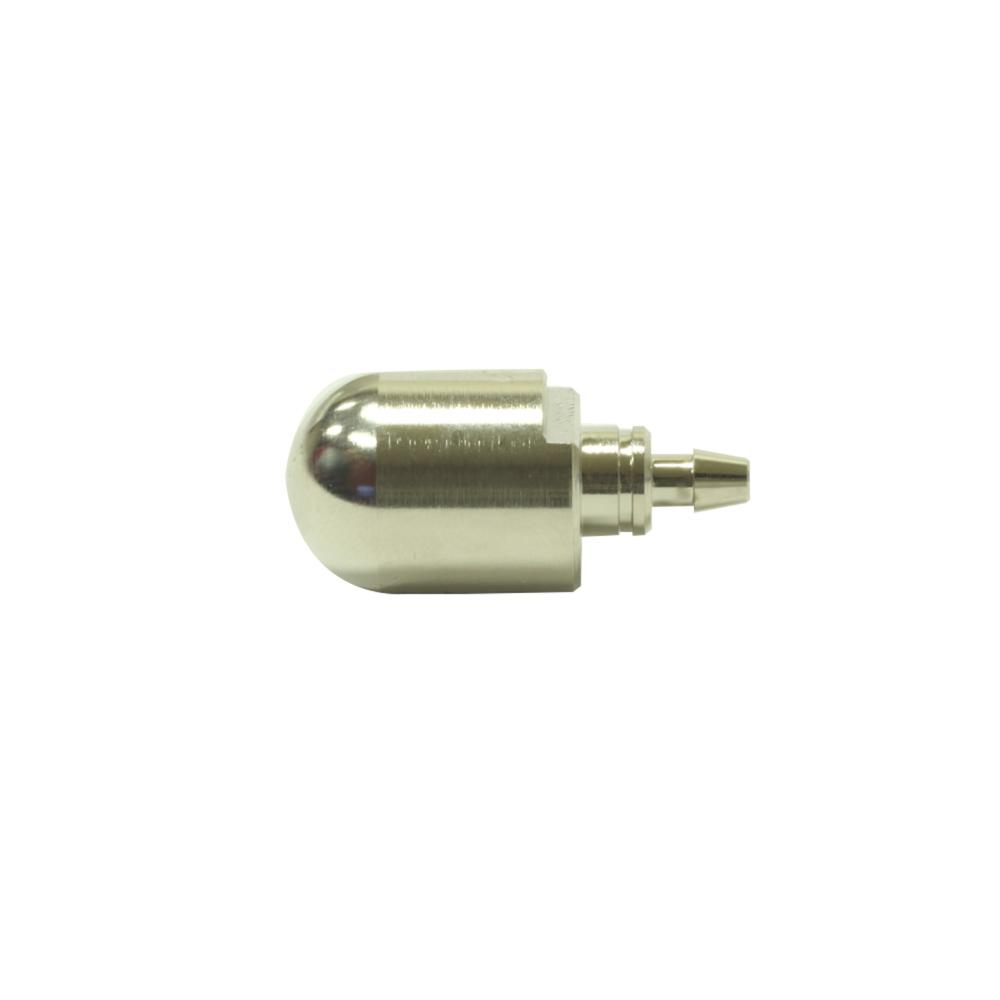

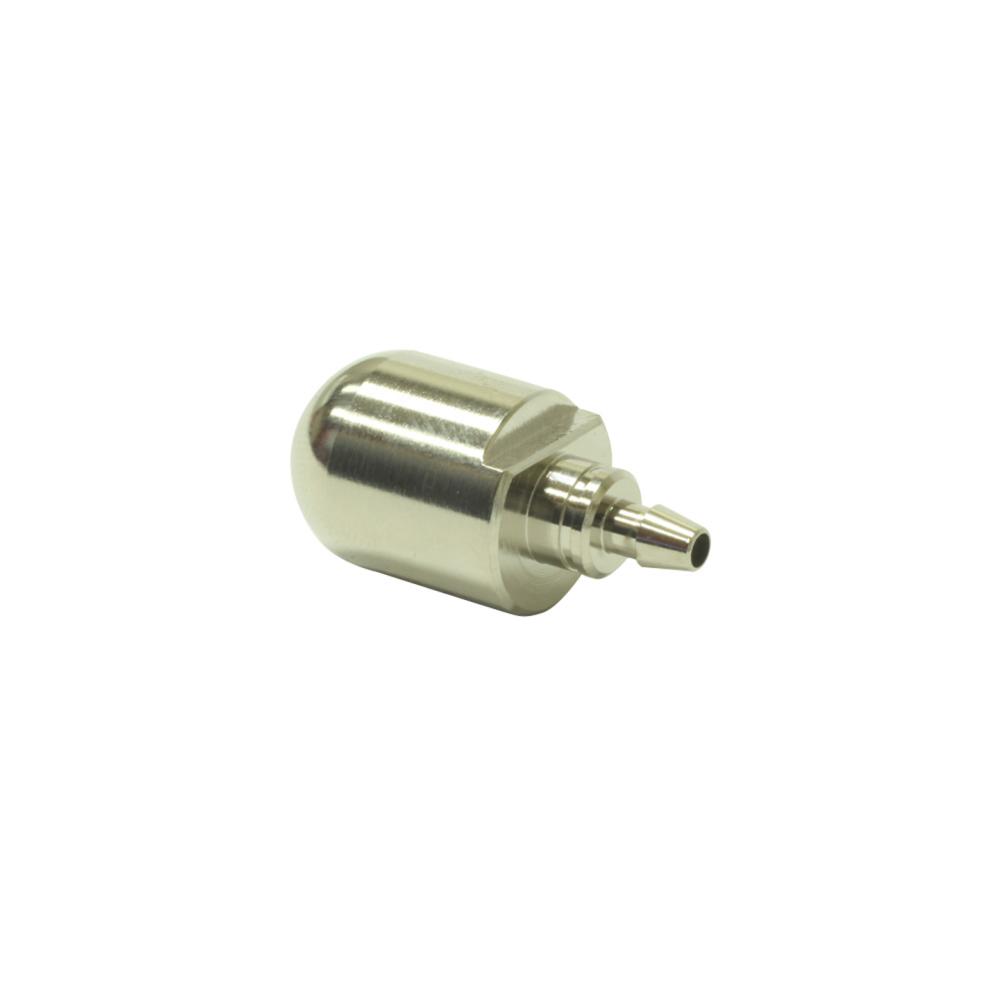

The Auxiliary Common Gas Outlet (ACGO) port is used to provide fresh gas to an auxiliary manual breathing circuit. It comes under the Breathing Gas Circuit (BGC) manifold in an anesthesia delivery system with an integrated breathing system. ACGO switch directs the fresh gas flow through the ACGO port on the front of the system. Oxygen concentration is displayed on the screen when the ventilator is set to ACGO mode. A relief valve in the manifold limits the fresh gas pressure at the ACGO port to 55 kPa (8 psi) at 45 l/min. ACGO provides a flexible breathing circuit in addition to existing, for specific medical functioning. The port is made of brass which is highly corrosion resistant. An electrodeposited nickel coating on a copper-base alloy substrate is applied on the port gives bright appearance. Finishing contains less than 0.1% by weight in homogenous material for lead, mercury, and hexavalent chromium and less than 0.01% by weight in homogenous material for cadmium.
