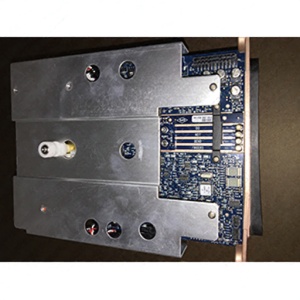

电子挥发器组件


商品编号	1011-7004-000-S
替代零备件新的替换件（新备件可以替代原有的旧备件。）	1011-7004-000
状态	全新
类别	麻醉设备
产品系列	Aisys
制造商	GE医疗
Seller	GE HealthCare
制造商零备件号	无
购买方式	不需归还

加入愿望清单

登录并添加到购物车

Please select date

Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

备件描述

The Electronic Vaporizer Assembly is an integral subsystem along with the agent cassette. The subsystem is provided to add an agent to the fresh gas flow. It mixes a specified amount of anesthetic agent into the fresh gas stream. The electronic control unit governs the flow through the agent cassette and the agent concentration in the fresh gas flow. The agent is delivered from the subsystem in one of two configurations depending on whether cassette pressure is below or above mixer output pressure. It consists of a backpressure valve which builds a pressure at the input to the vaporizer to drive gas through the cassette, if necessary a pressure relief valve that limits the maximum outlet pressure, the inflow and outflow flowmeters which measure flow by developing a pressure drop across a flow restrictor, the inflow and outflow valves which direct flow in the subsystem and an inflow check valve that prevents unmetered agent vapor from flowing backwards and entering the fresh gas stream.
