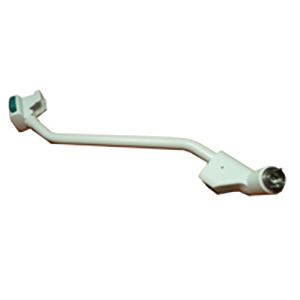

手控皮囊支承臂


商品编号	1009-8284-000
替代零备件新的替换件（新备件可以替代原有的旧备件。）	1009-8159-000
状态	全新
类别	麻醉设备
产品系列	Aespire
制造商	GE医疗
Seller	GE HealthCare
制造商零备件号	无
购买方式	不需归还

加入愿望清单

登录并添加到购物车

Please select date

Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

备件描述

The Bag Arm Support Assembly consists of tube, spring, lock ring and yoke at the end. Bag arm is intended to act as a closing switch of the ventilator path. This assembly helps to connect the bag/vent switch to the breathing circuit module. Bag arm and its sub parts are made up of stainless steel type 303 ASTM A 582 condition. A material, which gives high strength and hardness. The tube is joined to yoke at end using induction brazing with a braze ring, alloy 30-507 braze 505. All inside surfaces to be free of oil, grease, chips, flux, excess solder, and other debris. The power coating is done to the outside surface of the tubing, and all other surfaces to be free of power coating. This tubing is RoHS compliant as per 5240305GSP. Here the solder joints are not required to be leak free. It is being used in Aestivate anesthesia machine. The other applications are Maternal-Infant Care Giraffe™ Warmer, ARC Aestiva 7100, MS CARESCAPE™ Monitor B650 and ARC Testing Service.
