串口隔离板至快速充氧排线
| 1009-5567-000 | |
| 全新 | |
| 麻醉设备 | |
| Aespire | |
| GE医疗 | |
| GE HealthCare | 不需归还 |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述

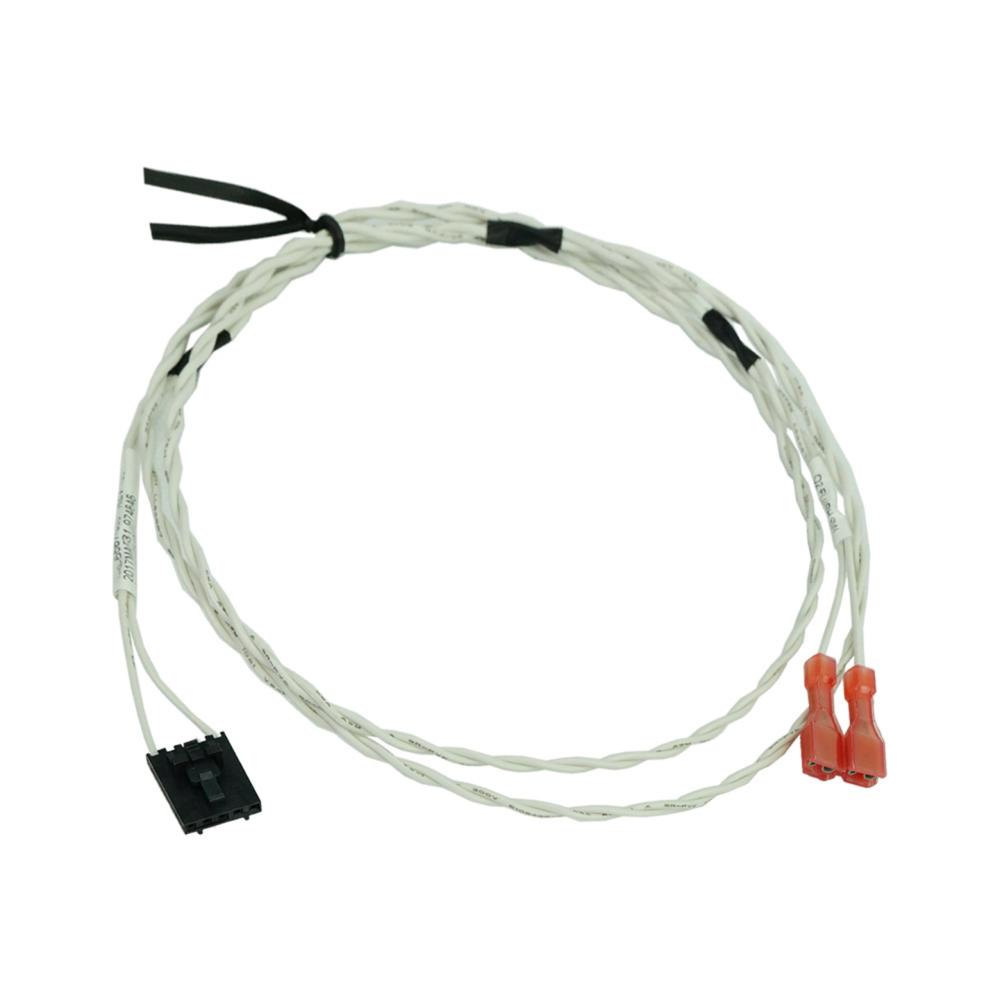

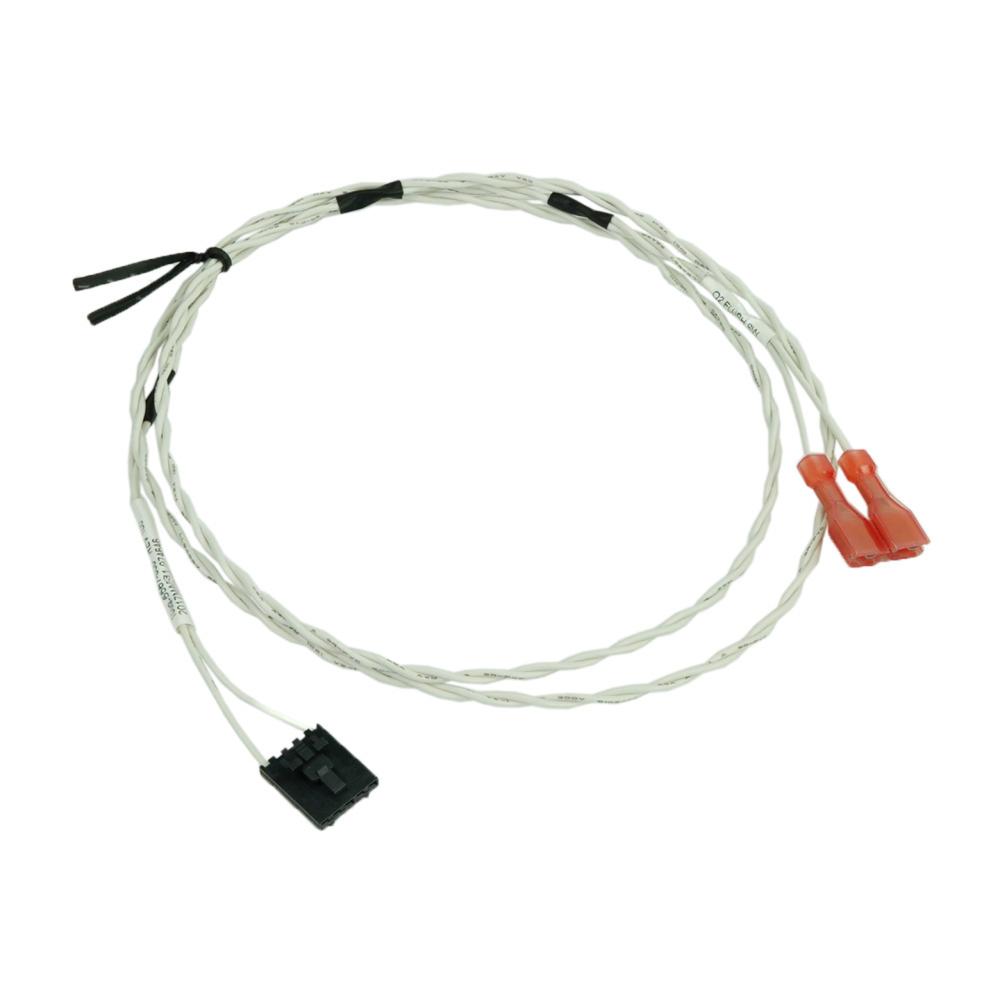

This cable harness is used to connect the IC harness series isolation board to Oxygen Flush Software, Extruded. It has two ends - one end comes with 5 postion single row black color crimp housing and the other end is made of two faston receptacles.The ends of the crimp housing and faston receptacles are connected via two cables of 22 AWG size. The cable conductor is made of tinned copper that is insulated with semi-rigid polyvinylchloride material which is non flammable, operates well with moderate heat and is cold resistant. Cable colors are assigned per the connection table and are available in white,black,red,green,yellow,blue,brown,orange,slate, and violet colors. This flexible cable is compatible with Aespire 100 and Aespire 7100 Anesthesia Delivery systems.
