紧凑型PS2条码扫描仪电缆


商品编号	2055394-001
替代零备件新的替换件（新备件可以替代原有的旧备件。）	2055393-004
状态	全新
类别	诊断心电设备(ECG)
产品系列	MAC 5500
制造商	GE医疗
Seller	GE HealthCare
制造商零备件号	无
购买方式	不需归还

加入愿望清单

登录并添加到购物车

Please select date

Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

备件描述

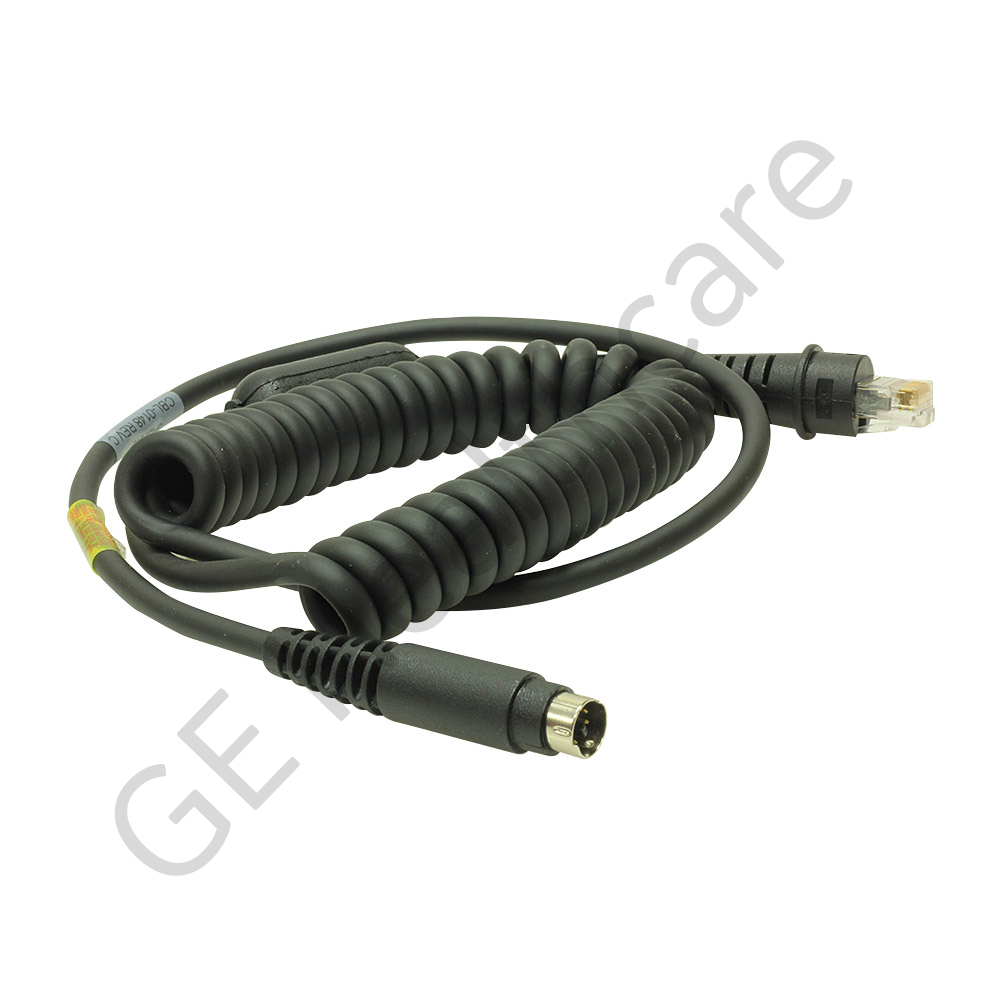

The Compact PS2 Barcode Scanner Cable is a component of the bar code scanner, which is a hand held device capable of reading linear (1D) and matrix (2D) bar codes. The PS/2 barcode scanner cable connects barcode reader to a computer keyboard, to transmit bar code data if it had been typed. One end of the cable is a 10 pin shielded modular plug used to connect barcode reader and the other end is a 6-pin mini-DIN connector used for connecting compatible computer keyboard system. These crimp plugs are designed to work with stranded cable and are easy to terminate. This cable is over molded to provide strain or bend relief. The cable shield is terminated at the connector end to ensure electrical contact between the cable and connector shield. The round shielded cables use twisted pair wiring, where two conductors are twisted together to improve electrical noise immunity. The scanner comes as a part of ARC MRI Monitor, MS DASH 4000, ARC Engstrom Carestation and MIC Giraffe™ OmniBed.
