Gantry Encoder Assembly with Bush Nemicon
| 5723262-2 | |
| 5311936 5723262 2328307 2369747 5149729 5182194-2 5182194-3 5182284 5182284-2 5723262-3 | |
| 全新 | |
| 计算机断层成像设备（CT） | |
| CT设备其他备件 | |
| GE医疗 | |
| GE Healthcare | 旧件归还 |
|
是 | |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述

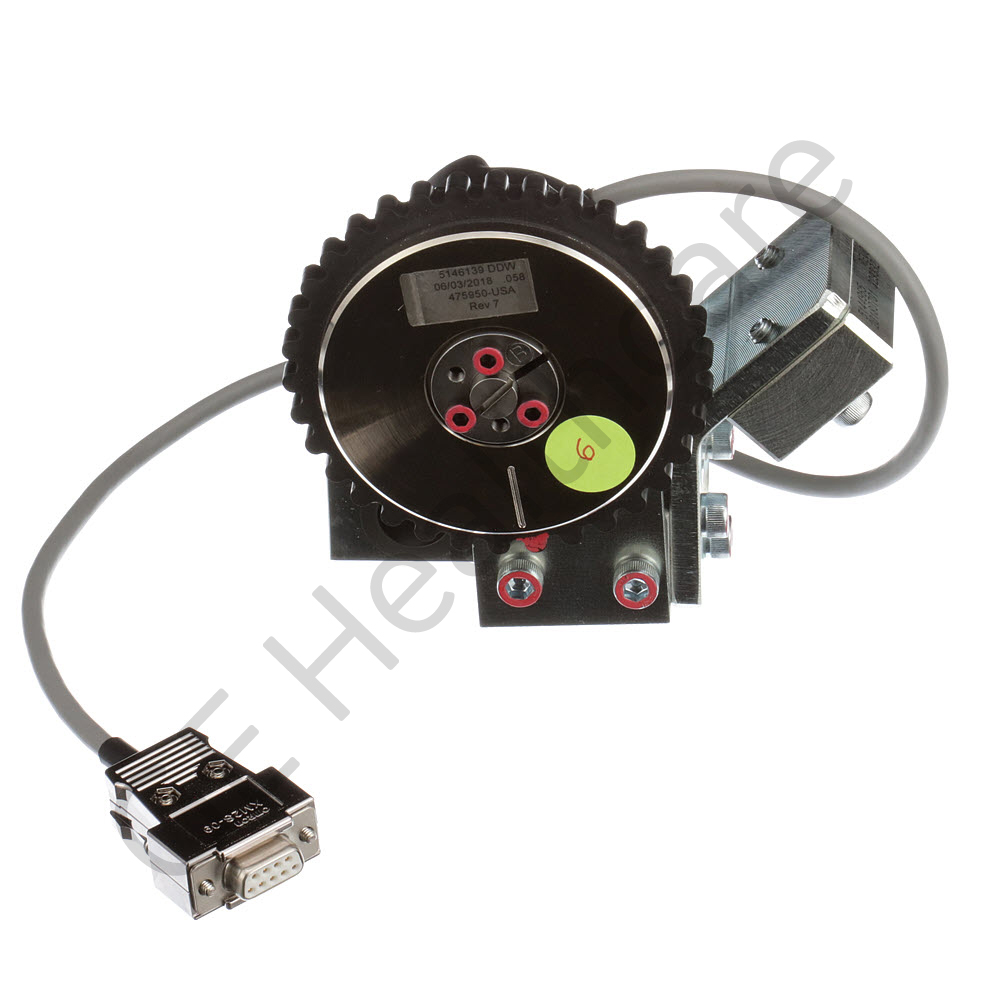

The Gantry Encoder Assembly is a custom designed part used in CT scanner equipment. The assembly is comprised of an encoder, cable, connector, bearing, screw, nut, adhesive and lock washer. The bearing is made up of high quality cold finished steel. The optical type incremental encoder generates an output encoded signal by allowing a LED light to pass through the transparent rotating disc. The encoder signal is amplified to a final output square wave signal. The encoder has built-in twisted shielded cables, 9-pin D-sub connector and cable clamps. This gantry encoder is being used in various medical machines such as PET Discovery ST 4-Slice, CT Revolution EVO 64/128-Slice, PET Discovery STE 8-Slice, CT Optima CT660 32/64/128-Slice, PET Discovery 600, CT Revolution EVO 64/128-Slice, PET Discovery ST HP 4-Slice, NM Infinia II
- PET Discovery STE 16-Slice, CT LightSpeed 5.X RT 4-Slice, PET Discovery ST 128-Slice and CT LightSpeed 7.X VCT 64-Slice, among others.
替代零备件：
我们为您提供了以下替换零备件。这些是兼容的替换零备件。没有超链接仅供参考且不可在线购买。如果您需要了解更多的信息，请联系客服人员。
| 建议替换备件 | 备件详情 |
|---|---|
| 5311936 | 轴向编码器组装件——运输收集器 |
| 5723262 | The Gantry Encoder Assembly consist of an incremental opt |
| 2328307 | |
| 2369747 | |
| 5149729 | SL4 ENCODER ASM |
| 5182194-2 | |
| 5182194-3 | SL4 ENCODER ASM, with-LED, with MD gear, ROHS |
| 5182284 | 5182284 |
| 5182284-2 | 5182284-2 |
| 5723262-3 |
